Outdoor mobile LED billboard trailer led mobile solar trailer roadshow screen 2.56m*1.60m LED trailer

FOB Reference Price:Get Latest Price
$5,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Application:
Outdoor advertising
Color:
Black, Black
Panel Size:
2560*1600mm
Pixel Pitch:
6mm
Place of Origin:
Zhejiang, China
Model Number:
E-F4
Brand Name:
JCT
Usage:
OUTDOOR
Tube Chip Color:
FULL COLOR
Display Function:
Animation and Graphics and Videos
Pixels:
6mm
Screen Dimension:
2560mm(W)*1600mm(H)
Pixel pitch:
P6
Waterproof:
IP 65
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
waterproof trailer coat
Port
Shanghai/Ningbo
Video Description
Product Description

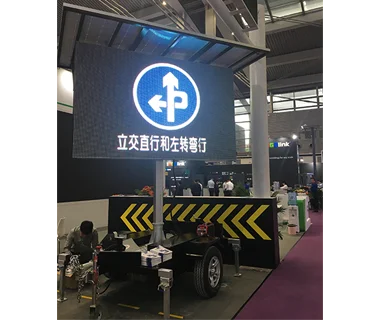

Rotating Mobile LED Trailer

Integration supporting, and the functions of hydraulic lifting, rotating system, realize the LED screen visual range 360 ° no blind Angle, further enhance communication effect, and is especially suitable for city, assembly, crowded occasion applications such as outdoor sports field.

Model
E-F4
Chassis
Brand
JCT
External Dimension
2700mm(L)×1800mm(W)×2600mm(H)
Aggregate Trailer Mass(ATM)
710KG
Tire
Solid rubber tires
Gross Trailer Mass (GTM)
930KG
Brake
Handle/Hydraulic
Supporting legs
4pcs
LED Screen
Screen SIZE
2560mm(W)*1600mm(H)
Dot Pitch
6 mm
Module Size
320mm(W)*320mm(H)
Brightness
≥7500cd/ m²
Max Power Consumption
680w/㎡
Lifespan
100,000hours
Average Power Consumption
288w/㎡
Hydraulic lifting System
Hydraulic Lifting System
Lifting Range 1000mm
Hydraulic Rotating System
Screen can rotate 360degrees
Wing-against Level
Against Level 8wind after screen lift up 1000mm

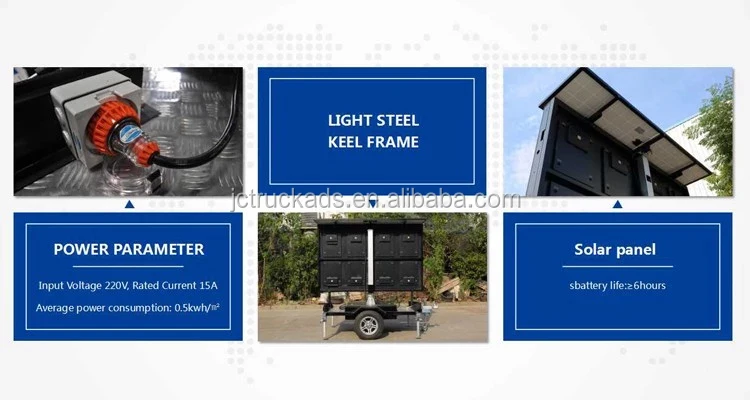

Power parameter
Power System
48V,50AH
battery life
≥6hours
Inverter
2000W
coulombmeter
1
Input Voltage
220V
Output Voltage
48V
Average power consumption
0.5kwh/㎡
Current
15A
Multimedia Control System
Optional configuration
LED Screen& Battery power & mechanical transmission is optional
Detailed Images
Our Company

About JCT:

Taizhou Jingchuan Electronics Technology Co.,Ltd,which named Shanghai Jingxiang Advertisement Communication Co.,Ltd ,was founded in 2007.We are the first culture and technology company who specialized in the LED advertising vehicle R&D, production and sales,as well as on-board commercial operation.

R&D SUPPORT:

Products involving mobile LED trucks,mobile LED trailers,mobile LED stage trucks,mobile LED container,mobile LED bus and other customization,total more than 30 models.

Hot Products
FAQ

1. Q: Why should we choose you?

A: Speciality: We focused on developing and producing outdoor LED mobile vehicles since 2007. Already got more than 30 products patents;
B: High-end: We always use the good quality accessories and leading technologies for supporting the best quality;
C: Support best solution: We support customization according to your requirements, so that the vehicles will have high performance cost ratio and best advertising effect!

2. Q: How about your after-sale service:

A: We support you original spare parts. Besides, we can give assistance in the following days by e-mail , telephone, video.
B: 24 months whole vehicle warranty
C: We are looking for the local service in overseas ,it is selected from our customers and developed as our dealers.

3. Q: What's your payment method?

A: T/T 30% deposit paid in advance, 70% of the balance before delivery;
B: LC 30days;
C: Western union;

4.Q: Where are you?

A: We and our factory are in Linhai,Taizhou city,it is near from Shanghai/Hangzhou/Ningbo,it is convenient to visit us by train from these cities.

5. Q: Can you provide the ISO9001 certificate or some others related?

A: Yes. We have rich experience for exporting to different countries such as Europe , South America, African, Russia and others This helps you importing successfully.
