LED mobile truck advertising truck, led screen car advertising, full color truck led display

FOB Reference Price:Get Latest Price
$75,000.00 - $80,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Application:
Outdoor advertising
Color:
Black, Black and others
Panel Size:
4480*2240mm
Pixel Pitch:
6mm
Place of Origin:
Zhejiang, China
Model Number:
E-QL3815-3
Brand Name:
JCT
Usage:
OUTDOOR
Tube Chip Color:
FULL COLOR
Display Function:
Animation and Graphics and Videos
Pixels:
6mm and others
Screen Dimension:
4480mm(W)*2240mm(H)
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
by muslin cover
Port
Shanghai/Ningbo
Video Description
Product Description

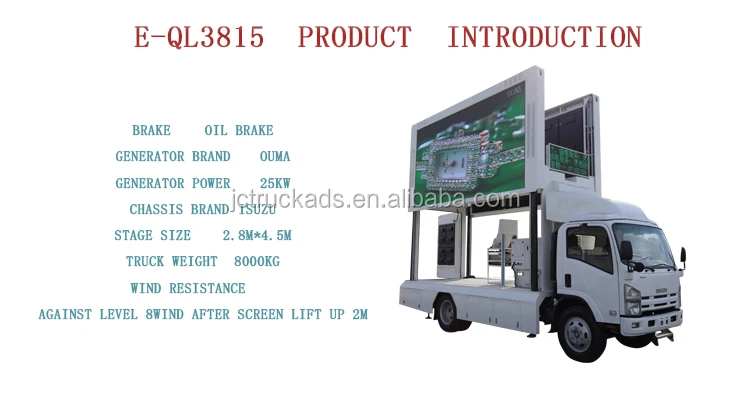

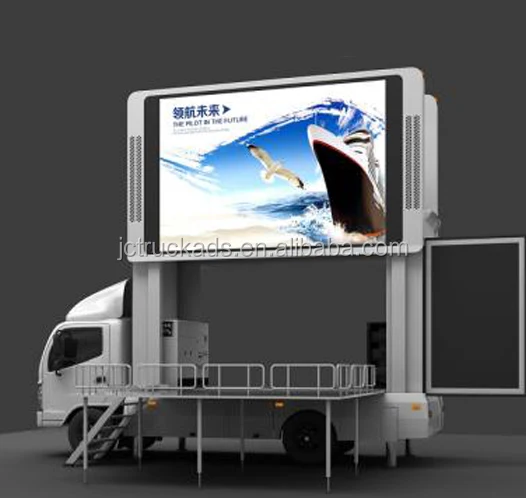

Lifting screen with expansion tank Mobile LED Truck

Integration supporting, and the functions of hydraulic lifting 2m,expansion tank, can be used as mobible exhition truck for food or other products, further enhance communication effect, and is especially suitable for city, assembly, crowded occasion applications such as outdoor sports field.

Model
E-W3815
Chassis
Brand
ISUZU
External Dimension
7200mm×2300mm×3900mm
Power
Cummins
Total Weight
8000KG
Seat
Single row 3seats
Curb Weight
7050KG
LED SCREEN(Left&Right)
Screen size
4480mmx 2240mm
Dot Pitch
6 mm and others
Module Size
320mm(W)*320mm(H)
Brightness
≥7500cd/ m²
Max Power Consumption
800w/㎡
Lifespan
100,000hours
Average Power Consumption
400w/㎡
                                                                                    LED  SCREEN(REAR SIDE)
Side led Screen Size
1280mmx1600mm
Rear  Screen Size
1280mmx1760mm
Dot Pitch
10mm
Brightness
≥7500cd/ m²
                                                                        SINGLE COLOR LED SCREEN(FRONT SIZE)
Canvas size
1280mm*480mm
Roller Diameter
100mm
Motor Power
≥80W
Control modes
Intelligent remote
Silent  Generator Group
Brand
Ouma
Power
25KW
Demention
1350mm x 800mm x 688mm
Number of cylinders
Water-cooled inline 4-cylinder
Power parameter
Power System
220V,25AH
Input Voltage
220V
Average power consumption
0.5kwh/㎡
Output Voltage
220V
Multimedia Control System
Monitor
Support 8-way signal input
Media player
with various kinds of common used video connector, be available for PC, camera and etc.
Sound
120W
Speak
200W
Optional configuration
LED Screen&expansion tank&Voltage& other mechanical transmission is optional
Detailed Images
Our Company

About JCT:

Taizhou Jingchuan Electronics Technology Co.,Ltd,which named Shanghai Jingxiang Advertisement Communication Co.,Ltd ,was founded in 2007.We are the first culture and technology company who specialized in the LED advertising vehicle R&D, production and sales,as well as on-board commercial operation.

R&D SUPPORT:

Products involving mobile LED trucks,mobile LED trailers,mobile LED stage trucks,mobile LED container,mobile LED bus and other customization,total more than 30 models.

Related Products
FAQ

1. Q: Why should we choose you?

A: Speciality: We focused on developing and producing outdoor LED mobile vehicles since 2007. Already got more than 30 products patents;
B: High-end: We always use the good quality accessories and leading technologies for supporting the best quality;
C: Support best solution: We support customization according to your requirements, so that the vehicles will have high performance cost ratio and best advertising effect!

2. Q: How about your after-sale service:

A: We support you original spare parts. Besides, we can give assistance in the following days by e-mail , telephone, video.
B: 24 months whole vehicle warranty
C: We are looking for the local service in overseas ,it is selected from our customers and developed as our dealers.

3. Q: What's your payment method?

A: T/T 30% deposit paid in advance, 70% of the balance before delivery;
B: LC 30days;
C: Western union;

4.Q: Where are you?

A: We and our factory are in Linhai,Taizhou city,it is near from Shanghai/Hangzhou/Ningbo,it is convenient to visit us by train from these cities.

5. Q: Can you provide the ISO9001 certificate or some others related?

A: Yes. We have rich experience for exporting to different countries such as Europe , South America, African, Russia and others This helps you importing successfully.
